Adapter for Resler Module and Resler Interface to Quadlock, New Generation, flat pin

With this adapter the Resler Module and Resler USB I-BUS Interface can easily be connected to the wiring harness of an Android radio. The installation of the module / interface by soldering is not necessary.

IMPORTANT: This adapter only fits the New Generation Quadlock with flat pins. Please check in advance which connector you need and the wiring harness of your Android radio has a second Quadlock connector (socket).

The adapter is not suitable for Xtrons of the PQS and IQ series, among others!

To use the I-BUS App you need the Resler Module and an App-License.

Here you find a list of all functions of the App

The adapter can be used in the following vehicles:

• BMW 3er E46 (1998-2007) with 16:9 navigation
• BMW 5er E39 (from 2000)
• BMW X3 E83 (2004-2010)
• BMW X5 E53 (1999-2006)
• BMW Z4 E85 E86 (2002-2008)
• BMW New Mini One and Cooper R50 (2001-2006)
• BMW New Mini Convertible R52 (2005-2008)
• BMW New Mini Cooper S R53 (2001-2006)
• BMW Range Rover L30 (1999-2003)
• BMW Rover 75 R40 (1999-2005)
• BMW MG ZT X10 / ZT-T X11 (2001-2005)
• BMW Rolls Royce Phantom RR1 (2003-..)

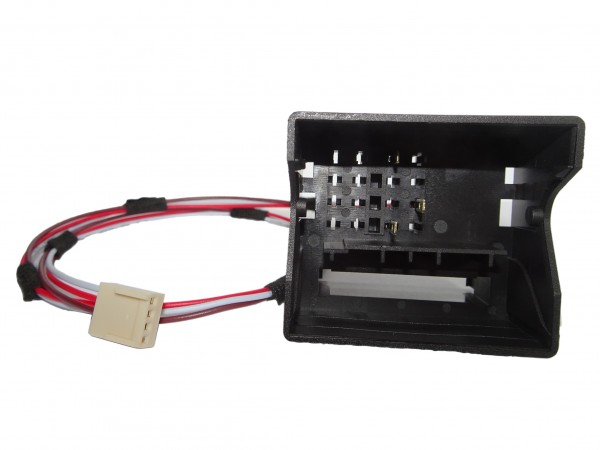

Scope of delivery: Adapter cable "New Generation" Quadlock with flat pins to plug for Resler Modlue / Interface

(Resler Module / Resler Interface, CAN BUS box and radio adapter cable as in the second picture are not included)
